Durable and Long-lasting LD 1050 Exercise Book Making Machine with 1000 mm Width

Name: Durable and Longlasting LD 1050 Exercise Book Making Machine with 1000 mm Width
Brand: Yiwu Linkage
Price: 180 USD

Wholesale Durable and Long-lasting LD 1050 Exercise Book Making Machine with 1000 mm Width from china suppliers

Applicable Industries : Manufacturing Plant, Home Use, Retail, Printing Shops, Advertising Company

Showroom Location : Viet Nam, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia

Condition : New

Type : Paper Cutting Machine

Computerized : Yes

Place of Origin : Zhejiang, China

Brand Name : Yiwu Linkage

Voltage : 380 V

Dimension(L*W*H) : 25000 x 3250 x 3000mm

Weight : 25 kg

Warranty : 1 Year

Production Capacity : 300 m/min

Key Selling Points : Easy to Operate

Max. workable width : 1000mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

PLC Brand : Schneider

After-sales Service Provided : Engineers available to service machinery overseas

LD 1050 : exercise book making machine

Output : Exercise Book

Cutting speed : 45 cycles

Keyword : Exercise Book Production Line

Machine type : Automatic Grade

Raw material : Reel Paper Web Paper

Slitting width : 1050mm

Packaging Details : Wooden Cases. Loaded by 3 x 40 feet containers.

Port : Ningbo - China

Supply Ability : 100 Unit/Units per Year

Price : $180,000.00/units >=1 units

MOQ : 1 set

Contact Now

2023 New Fully Automatic Exercise Book Machine

Description :

This recently-developed machine by our company is of stable quality and high efficiency , which is applicable to the processing of comparatively-thicker thin notebook , thin notebook of two different inside sheets and thin notebooks of single-sided sheet with four colors. This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, Control interface touch screen operation and water ink flexo printing. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 12 processes from Dual reel paper unwinding , high speed flexographic printing 4/4, Cross cutting , Collecting counting, Auto feeder cover, Stitiching , folding , Back Pressing , Strip cross cutting, Trimming and slitting, Delivery counting the finished products of notebooks.

Product feature :

1) Fully automatic Exercise book high product

2) Double Feeders, Double paper unwind

3) Environmentally ink flexo graphic four colors printing

4) Speed adjustable, suitable for variable paper

5) Micro computer control and Electro-optical tracking

6) Control interface touch screen operation

7) The adoption Gas-liquid interaction, air moves the technique of paper, change paper fast and convenience, reduce the production time

8) Compactly structured to need a smaller area, easy to operate, lower manpower cost, high quality, competitive price, good after-sales service

Technical Parameters :

Product model LD-1050

Web width 580-1020mm

Max printing speed 350m/min

Repeat range printed 300-670mm

Cutting of length 300— 670mm

Counting collecting 5-50sheets

Max. reel paper diameter 1200mm

Sheet weight 45-120g

Notebook width 130-225mm

Cover weight 80-300g

Sheet weight 45-150g

Max. output frequency 45 times

Sheet stitching thickness 8mm

Total power 30KW

Overall dimensions (L x W x H ) 25000 x 3250 x 3000mm

Machine weight 25 T

Durable and Long-lasting LD 1050 Exercise Book Making Machine with 1000 mm Width

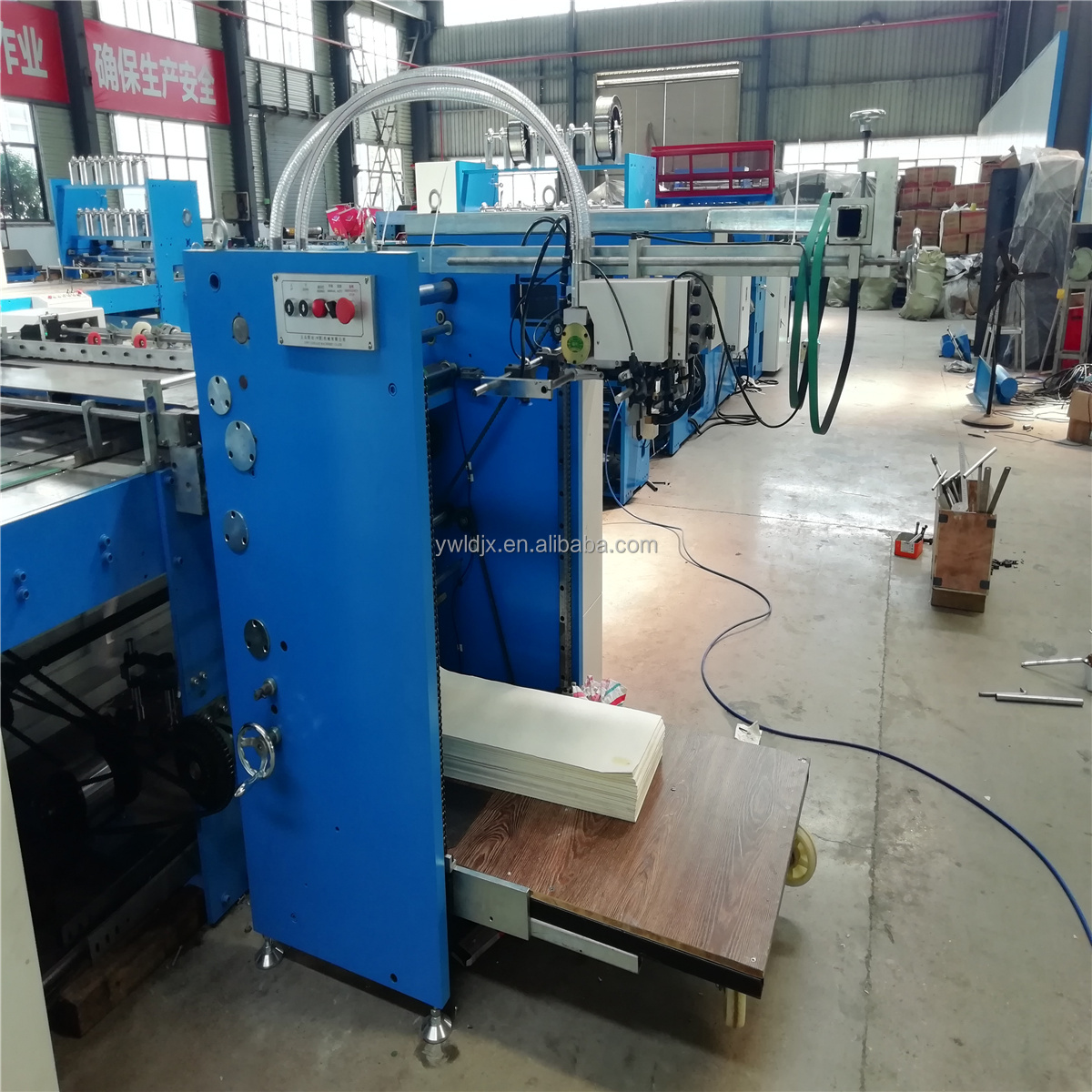

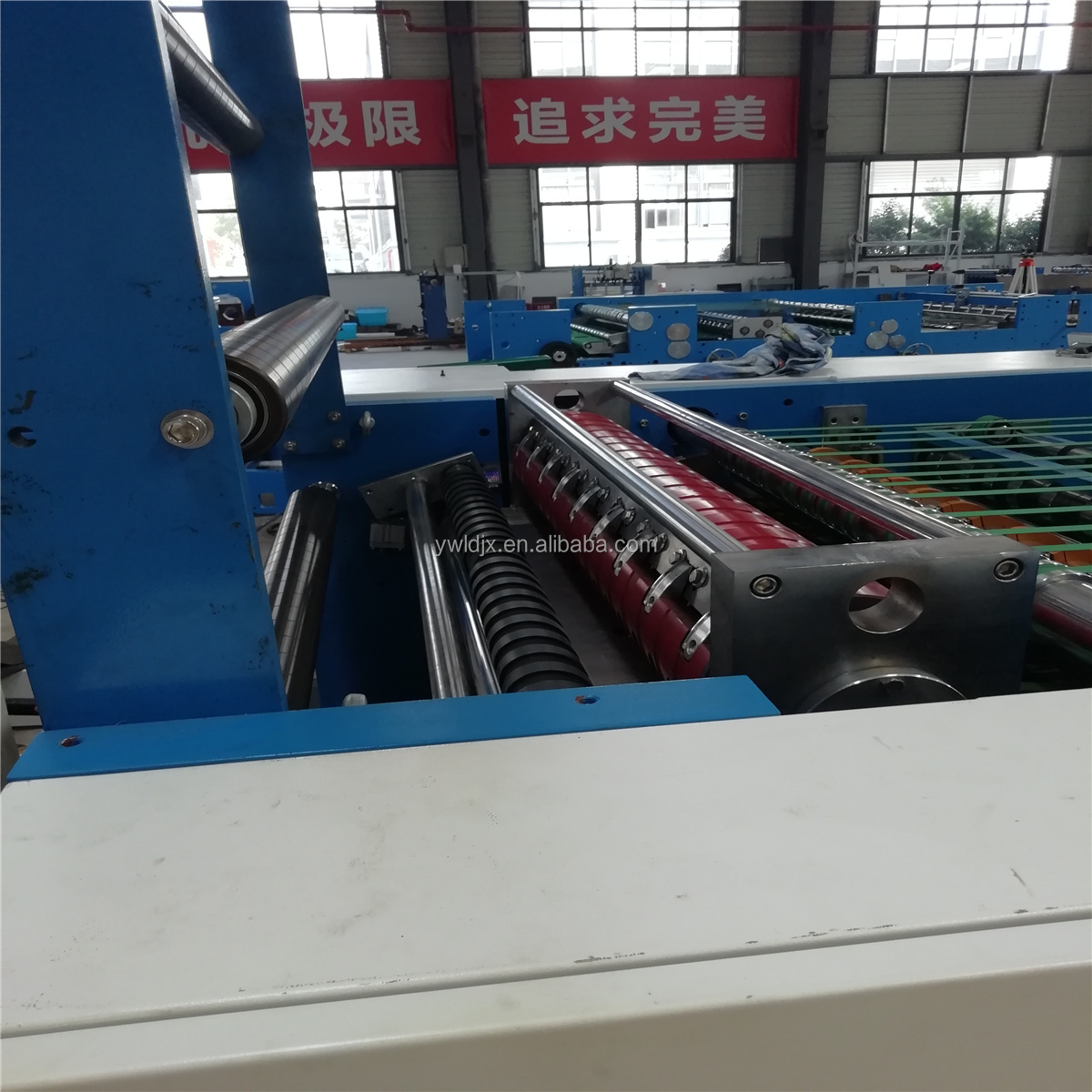

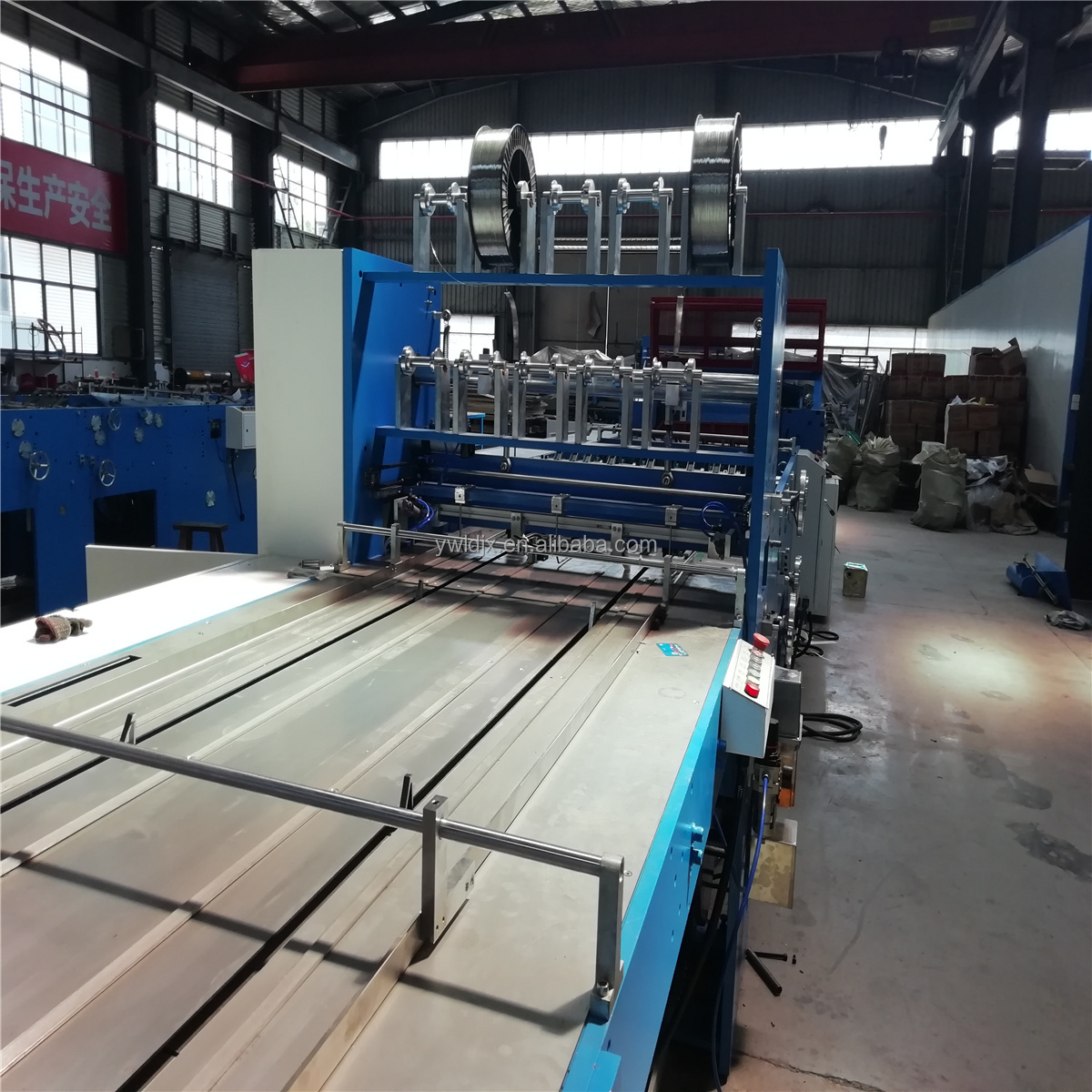

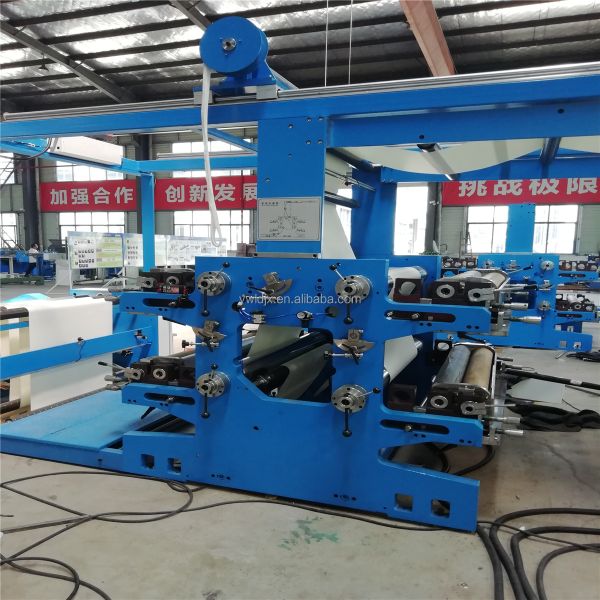

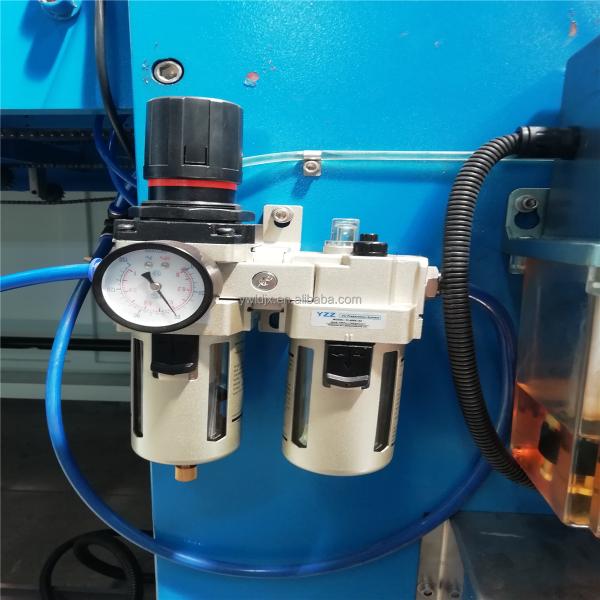

Durable and Long-lasting LD 1050 Exercise Book Making Machine with 1000 mm Width Images
